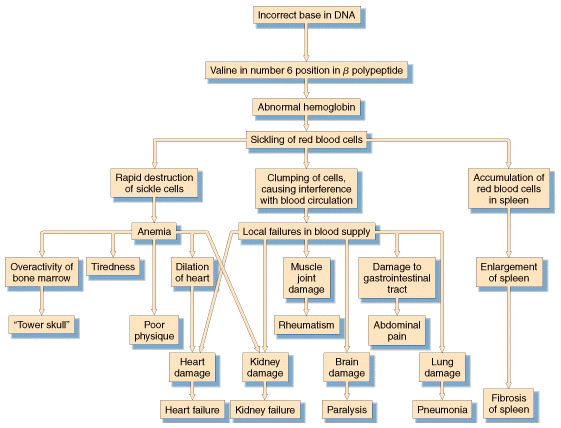

Pleiotropic consequences of the HbS mutation in beta globin gene

For persons with HbS/HBs genotypes, medical consequences include anemia, damage to various internal organs including the spleen and heart, and a "tower" or "bossed skull"


Figure © 1997 by Klug & Cummings; all text material © 2010 by Steven M. Carr
