Bio2250 - Dr Carr
Sample Structure questions

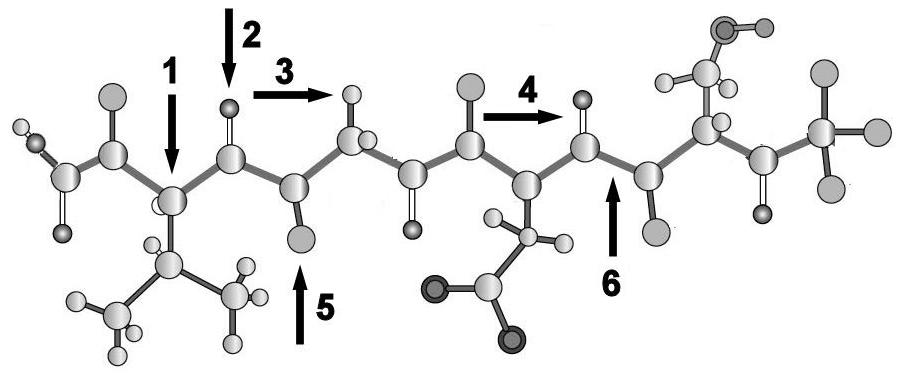

Protein backbone

1. ______                                           A.  H-Bond                                          H. Radical Group              O. Adenine

2. _  F __                                              B. Peptide Bond                                I. N terminus                      P. Cytosine

3. ______                                           C. Phosphodiester Bond                J. C terminus                      Q. Guanine

4. ______                                           D. Double Bond                                 K. H terminus                     R. Thymine

5. ______                                           E. α-Carbon                                        L. 5’ terminus                    S. Uridine

6. ______                                           F. Hydrogen                                       M. 3’-terminus

7. ______                                           G. Oxygen                                           N. 1’-terminus


Enter the LETTER of the correct name for each NUMBERED structure.

For example, when you see that #2 above is a Hydrogen atom, enter F as shown.

Not all answers are used; none is used more than once.
  Use the same list for both figures.

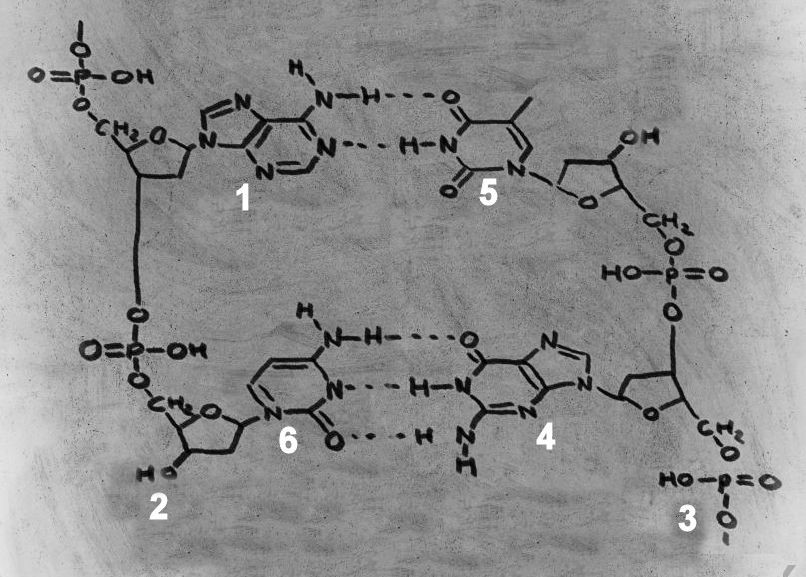

ACGT

1. ______

2. ______

3. ______

4. ______

5. ______

6. ______



All text material © 2016 by Steven M. Carr
