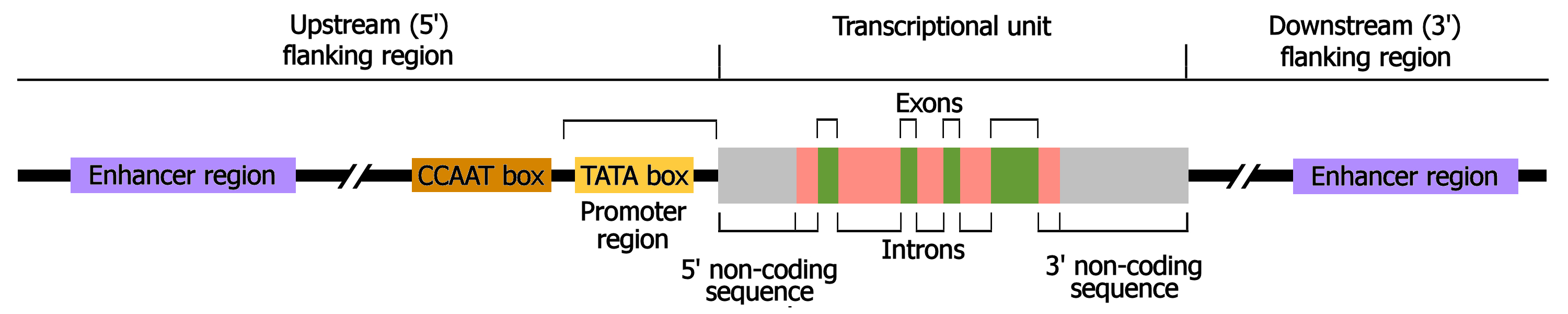

Organization of a eukaryotic protein-coding gene region


    By convention, the upstream downstream orientation corresponds to the 5' 3' direction of the DNA sense strand; it is ordinarily drawn left to right for convenience.

     The transcriptional unit comprises the expressed exons and intervening introns, as well as 5' non-coding sequences required for RNA polymerase binding (Shine-Delgarno sequence) and trailing 3' non-coding sequences. Outside the transcriptional area, the 5' flanking region ("upstream") gene region includes the 'CAT box' and 'TATA box' promoters required for RNA polymerase recognition prior to transcription. Enhancers that regulate occurrence, timing, and amount of transcription occur in both the upstream region and the 3' flanking region ("downstream") region; multiple enhancers may occur many hundreds of nucleotides upstream.


Figure © 1997 by Klug & Cummings; text © 2014 by Steven M. Carr
