ddNTP terminators

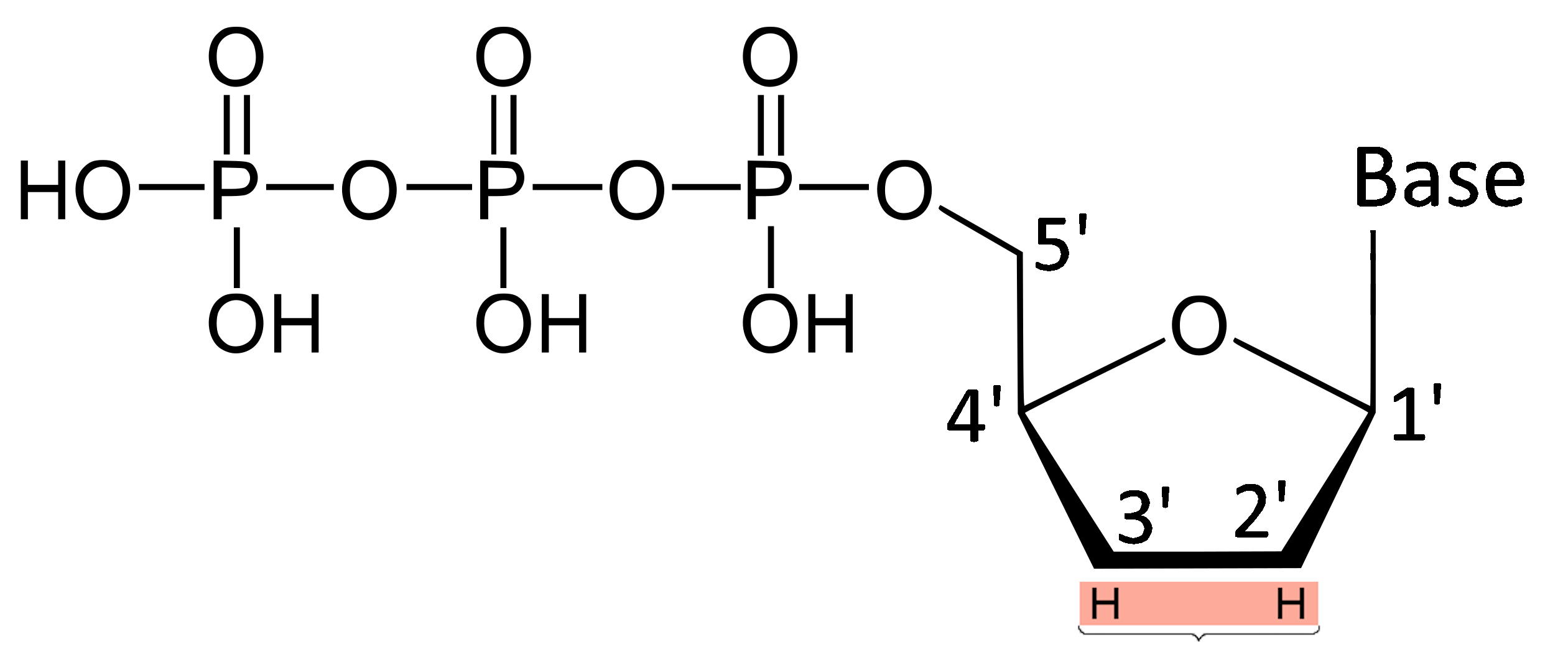

    Dideoxy nucleoside triphosphates (ddNTPs) lack an -OH on the 3'-C as well as the 2'-C of the deoxyribose sugar. The 5'-C can form a phosphodiester bond with the previous nucleotide in the chain, but the 3'-C cannot form a bond with next incoming dNTP.  Addition of a ddNTP during DNA replication therefore stops synthesis.

Figure ©2000 by Griffiths et al. ; text ©2016 by Steven M. Carr
