Initiation of RNA transcription

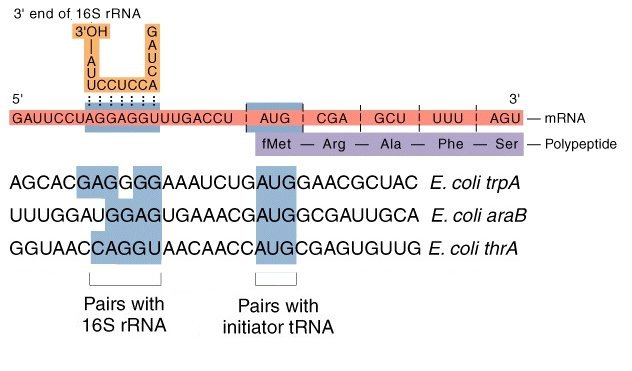

The ribosome binds to the Shine-Delgarno sequence (variation on 5'-AGGAGGU-3'), which is located approximately six bases 5' to the initiator (AUG) codon.
