RNA transcription

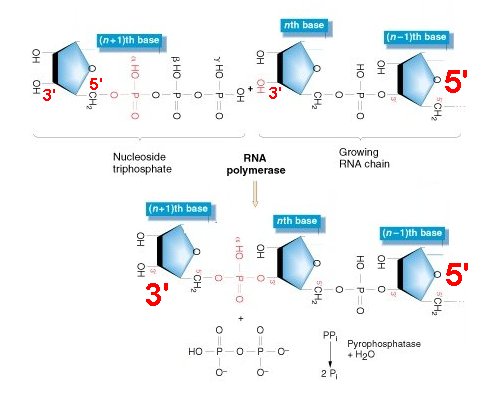

Sequential addition of ribonucleotides occurs at the 3’ end of the growing RNA chain, so that growth occurs in the 5'  3' direction, as in DNA . Note that in this diagram, the process is depicted as proceeding from right to left.




Figure © 2000 by Griffiths et al. ; text © 2005 by Steven M. Carr
