Secondary structure of Hemoglobin S versus A

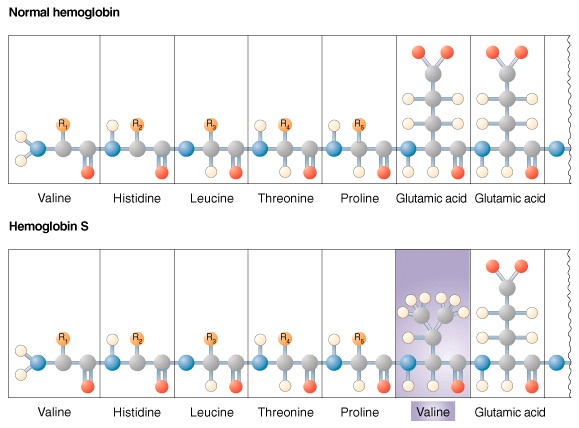

Sickle-Cell Hemoglobin (HbS) is due to a substitution of Valine for Glutamic Acid at the sixth residue of the beta chain subunit of hemoglobin.


Figure © 2000 by Griffiths et al. ; text © 2014 by Steven M. Carr
