Post-translational modification of Insulin

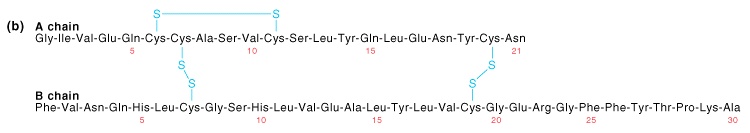

The tertiary structure of the mature insulin molecule results from folding of the A chain back on itself, and cross-linkage of the A & B chains, by means of three disulfide bridges [S-S].


Figure © 2000 by Griffiths et al. ; All text material ©2010  by Steven M. Carr
